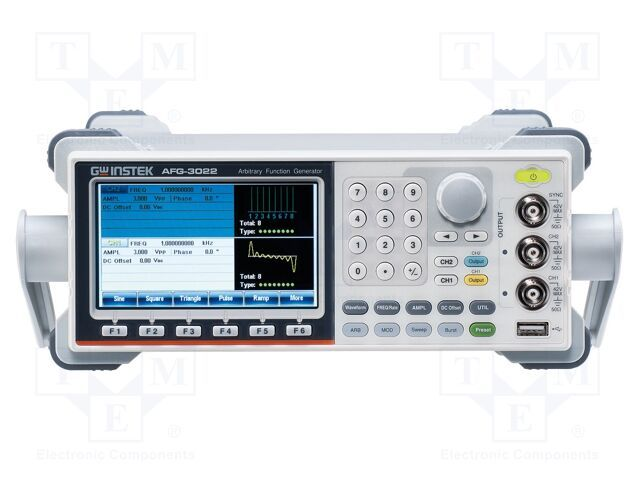

GW-Instek AFG-3022 Arbitrary Function Generator

GW-Instek AFG-3022 Arbitrary Function Generator, 2 channels, 1 uHz - 30MHz, 16-bit resolution, 1 mVpp - 10 Vpp amplitude

new, in original packaging.

Features

• 2 channels, 1 uHz to 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude.
• 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
• 8M Points/channel standard waveform memory
• Input and output signal grounds are independent of the housing, and the signal grounds between channels are insulated
• Synchronized phase operates up to 6 units and 12 channels
• Pulse waveform parameters can be set independently for more precise timing
• Harmonic signal generator
• Support SUM modulation, coupling, tracking, and phase functions
• Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep, and burst functions
• With USB/LAN instrument control interface
• IQ baseband waveform output function for AFG-3032

Content:

• 2 x GTL-101, BNC-Alligator Test Lead
• 1 x Quick Start Guide
• 1 x CD-ROM with AFG software and user manual
